NaxTo

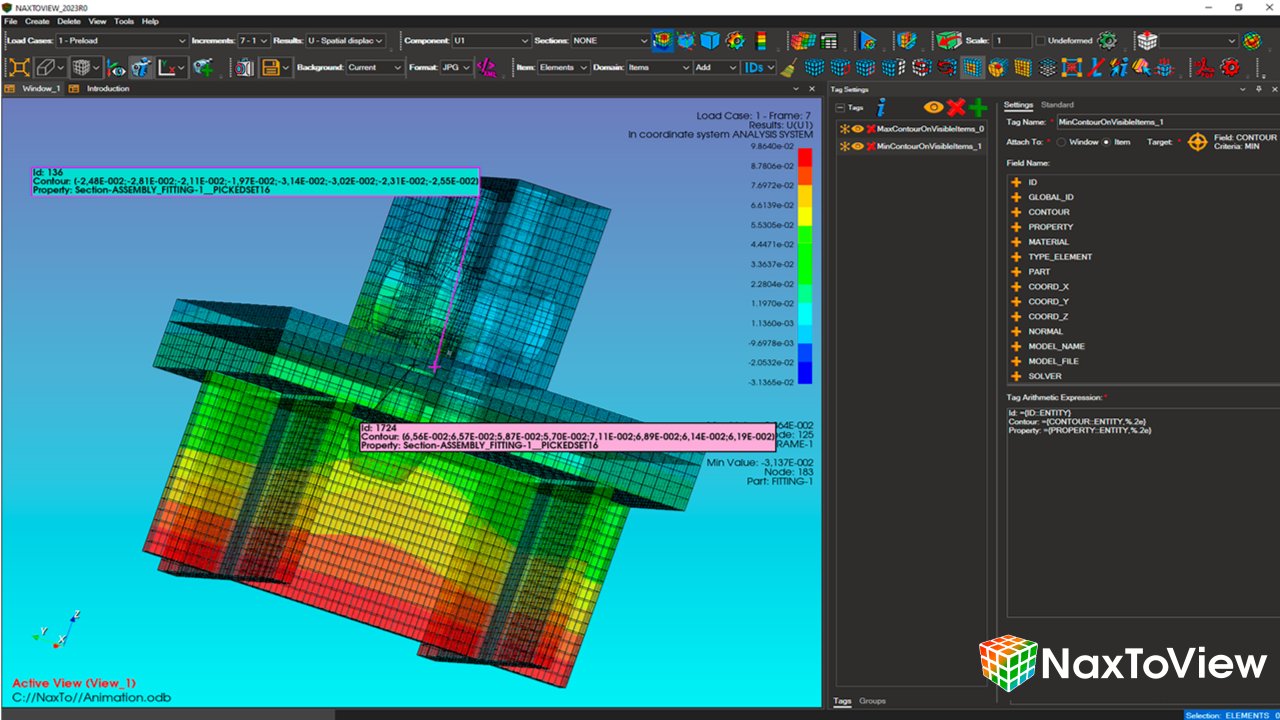

Software Required: .NET Framework Runtime 4.7.2 The next generation tools for managing all your results in FEM analysis. NaxTo is a suite for Windows x64 that optimizes the process of structural analysis based on the finite element method (FEM), significantly reducing time on engineering projects. NaxTo connects FEM analysis results to MS Office applications and Python code to simplify data extraction, results updates, image generation and report automation. Supports Nastran, Ansys, Abaqus and OptiStruct result file formats. The NaxTo suite consists of 4 modules: - NaxToView: A 3D post-processor that simplifies the visualization and analysis of structural results. In addition, NaxTo View includes 3D PDF creator: Creates 3D views of FEM Analysis in PDF format for exchange of information between departments or with customers and suppliers. - NaxToCell: Offers the possibility to extract and manage the results directly from MS Excel, thus facilitating the way to obtain the data needed for the FEM analysis. - NaxToDoc: Facilitates the insertion, manipulation and updating of images to and from MS Word, Excel, and PowerPoint. It eliminates the need to take screenshots. In a few simple steps, the changes made in the results files are updated directly in the images captured. - NaxToPy: A Python library objects oriented that offers a wide range of tools and resources to automate tasks related to structural analysis. NaxTo has become the essential tool for companies in different sectors such as Aerospace, Automotive, Wind Power, Railway, Maritime, among others. At Idaero, a technology company based in Spain, our mission is to drive innovation in the engineering industry. Our engineering team, together with the software development department, has years of experience in critical industries. We understand the importance of workflow efficiency, and therefore, NaxTo's main goal is to take post-processing to the next level, avoiding time-consuming tasks and saving time between 25% and 60%. Compatible files: - Result files: Nastran ( .op2, .h5, .xdb), Optistruct( .h3d, .op2) Ansys ( .rst), Abaqus ( .odb) - Input files: Nastran (.bdf/.dat) Optistruct (.fem) Abaqus (.inp) Community Version: -Python Scripting -Multi-Windows -Export data to Excel, PDF, txt… -XML File -Deformed -Animation -NaxToPy Professional Version: -Community version plus -NaxToDoc -NaxToCell -Export to PDF 3D file By default, the NaxTo Community License will appear. Community version is licensed for academic use and non-profit investigation. For Professional or profit use you must have the professional license A 3-month free trial version of Professional version is available Products require a device with elevated administrative rights/permissions to function properly.
